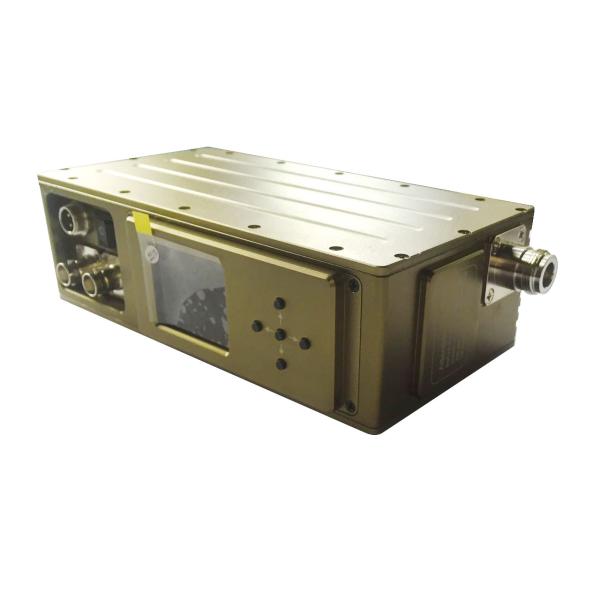

300Mhz - 900Mhz COFDM Video Transmitter For Broadcasting Video Audio Transmission

Name: 300Mhz 900Mhz COFDM Video Transmitter For Broadcasting Video Audio Transmission
Brand: Kimpok Technology
Price: 1 USD

China 300Mhz - 900Mhz COFDM Video Transmitter For Broadcasting Video Audio Transmission wholesale

Brand Name : Kimpok Technology

Model Number : KP-TS5000

Certification : CE/FCC/ROHS

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 2,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Modulation : COFDM

Frequency : 300-800MHz(option), 12G/2.4G/5.8GHz(customized)

RF output Power : 2-5Watt (adjustable)

Voltage : DC 12V

Bandwidth : 1.25/2.5/6/7/8MHz(optional)

NLOS Distance : 1-3km

Size : 140*85*50mm

Weight : 800g (net weight)

Contact Now

300Mhz - 900Mhz COFDM Video Transmitter For Broadcasting Video Audio Transmission

Introduction:

This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture in revolution 720*576, short latency.

This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.

Features:

2-5Watt RF power adjustable;
Built-in with battery 2300mA ;
More intuitive and natural with a coulobmeter;
Popular with users, and was applied to any AV projects.

Tech Specification:

Transmitter parameters:

Frequency	300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
RF output Power	2-5Watt(adjustable)
Voltage	DC12V
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz
Bandwidth	1.25/2.5/6/7/8MHz(optional)
Transfer rate	2/4/6/8Mbps(optional)
FEC	1/2,2/3,3/4,5/6,7/8(optional)
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Video Input	1 line PAL/NTSC analog video
Audio Input	Analog stereo left and right channels
Video Compression	H.264
Data encryption	AES 265 bit / ALLTECH Basic scrambling
Flatness	≤2dB(within full frequency range) , ≤0.5dB (within 8MHz)
Carrier	2K,8K
Video Signal	1Vp-p@75Ω,NTSC/PAL adaptive
Resolution	720×576(PAL) , 720×480(NTSC)
RF Interface	N(F)
Video Format	PAL/NTSC(self-adaption)
AV Interface	BNC
Case Material	Aluminum alloy, waterproof
Built-in battery	2300mA, 3Hrs
Work environment	-30~70°
Distance	1-3km NLOS; 100km LOS from air to ground
Size	18010060mm
Weight	1444g(net weight)

Receiver parameters:

Frequency	300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
Memory	60G, 1way 48hours recording
LCD monitor	7inch or 9.5 inch
Receive sensitivity	< -105dBm
RF Interface	N(F)
Modulation	COFDM
Power supply	AC220V
Bandwidth	2/2.5/4/8MHz(adjustable)
Constellation	QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz
FEC	1/2,2/3,3/4,5/6,7/8(optional)
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Video Output	1 line PAL/NTSC analog video
Revolution	720×576(PAL) , 720×480(NTSC)
Lines of horizontal	625 or 525 Line
Audio Output	Analog stereo left and right channels
Data encryption	AES 265 bit / ALLTECH Basic scrambling
Voltage	AC220V±20V, DC14V~DC16V
Work environment	-30~70°
Size	370490220mm
Weiht	18kg

300Mhz - 900Mhz COFDM Video Transmitter For Broadcasting Video Audio Transmission

Installation Diagram:

300Mhz - 900Mhz COFDM Video Transmitter For Broadcasting Video Audio Transmission
